SwimEasy High-Performance DIY Solar Pool Heater Kit - 15-20 Year Life Expectancy - Ultimate Combination of Performance & Durability
- Hassle-Free Returns
- In stock, ready to ship
SwimEasy solar panels provide the ultimate pool heating experience. SwimEasy utilizes today’s most advanced technology and panel designs to create the ultimate combination of performance and durability. SwimEasy captures more thermal heat from the sun with its superior absorber technology, while also enabling water to move more effectively through the collector by removing flow barriers with its over-molded header.
Simply put, more heat absorption from the sun and more water flowing through your heating system, means more heat transferred to your pool! SwimEasy’s specialized header design with improved flow characteristics also means the panels drain more effectively, providing a longer service life with less maintenance.
SwimEasy solar pool panels are the perfect choice for anyone looking to replace existing panels that use rubber hose connectors & metal hose clamps. SwimEasy is also the perfect choice for anyone wanting the best of both words - performance & durability - without needing to compromise one for the other.
SwimEasy pool solar panels are manufactured in the USA from high-grade materials and utilize some of the most advanced methods and designs available, delivering a high-performance collector proven to last in all types of weather for 15-20 years!
CUTTING-EDGE DESIGN
SwimEasy solar panels feature an upgraded mounting system, molded header for a solid, one-piece panel with virtually no manufacturing variances, better absorber plates for enhanced performance and durability, and an innovative flexible zip joint system across the absorber surface, improving durability and longevity.
UNIVERSAL MOUNTING SYSTEM
SwimEasy is one of the only solar pool heating systems designed to be compliant with home construction codes.
Traditional mounts fit snugly to the collector, allowing no flexibility for the collector to move as the material expands and contracts throughout the day. Collectors restricted by these mounts would bind at each anchor point causing additional and unnecessary stresses to the collector and roof penetrations, leading to increases in product failures.
How Does SwimEasy Solve This? The Universal Mounting System!

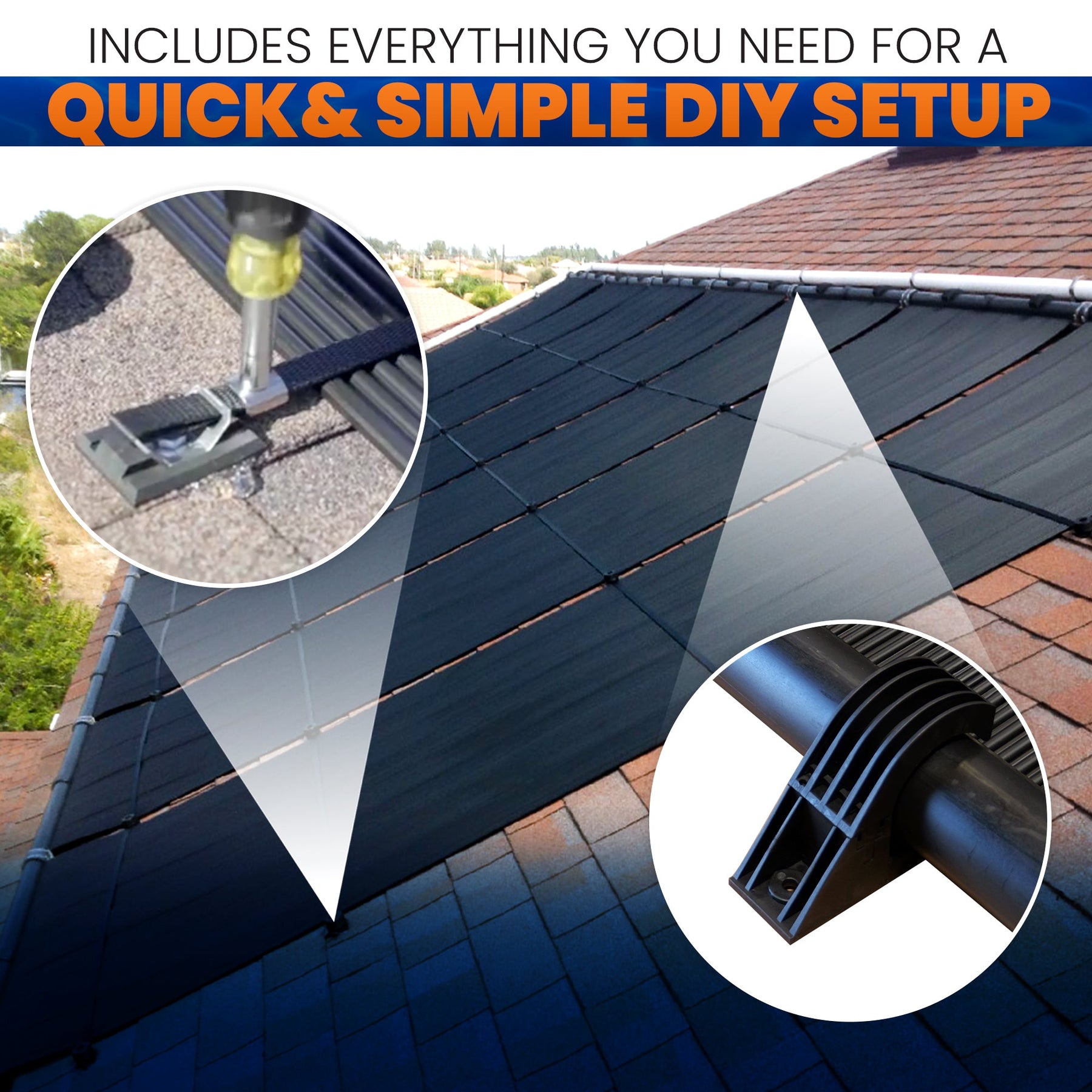

The roof mounts are specially engineered to be placed anywhere along the width of the header. This enables the mounts to be anchored directly into roof rafters, adding stability to the panel array.
Secondly, the base of each mount cradles the header, lifting it slightly off the roof. The top secures snugly into the mount base, allowing the panel to be installed easily. This two-piece, “free floating” design permits your panels to expand and contract without causing stress to the panel, the anchor points, or your roof.
OVER-MOLDED HEADER
SwimEasy consists of a solid, one-piece panel with virtually no manufacturing variances.
SwimEasy uses today’s most advanced technology to create a single-piece, over-molded header. The header is the main conduit that carries your pool’s water to and from the absorber surface. Traditionally, headers are welded to the absorber. Welds tend to naturally weaken over time with the normal stress of expansion and contraction of day-to-day use.
During the manufacturing of SwimEasy panels, raw material is forced into a mold. This material is under intense pressure and high heat as it flows into the mold, directly over the absorber. The result is a solid, one-piece panel with virtually no manufacturing variances. There is more to SwimEasy’s molded header than durability. It is your pool water’s expressway, and traffic jams are not allowed!
Because the header is molded directly around the absorber tubes, there are no barriers, so water freely exits the header into each individual tube. Simple welding, or other manufacturing methods, can block the flow of water significantly at this point, which in turn reduces the amount of heat delivered to your pool. Flow restrictions also add back pressure to the pool’s entire filtration system and can reduce its overall life expectancy. Simply put – the more water that can flow through your heating system, the more heat that will be transferred to your pool.
FLEXIBLE ZIP JOINT SYSTEM
Innovative zip joints allow for vertical expansion and contraction, increasing durability and reducing degradation.
The illustration above details SwimEasy's flexible expansion joints, located every 6 inches across the absorber surface.
These flexible zip joints allow for vertical expansion and contraction; critical for applications where a tree or other shadow-causing element, like chimneys or roof lines, may partially shade the collectors as the sun’s angle changes. Flexible joints eliminate stresses caused by natural temperature variances between panel sections by allowing the panels to move along the joint freely.
Additionally, unlike traditional bonding methods – actual welding of the plastic that can pinch or puncture the absorber surface – there are no manufacturing variances with SwimEasy flexible joints!
HIGH PERFORMANCE ABSORBER
More heat absorption from the sun means more heat transferred to your pool.
When engineering the absorber, a tube-on-fin design was created for its combination of performance and durability. Loose-tube absorber designs produce the least effective heating surfaces, and flat plate and welded tube designs don’t allow for expansion and contraction, leading to premature failure.
Simply put, SwimEasy's tube-on-fin absorber design takes the best of previous designs and combines them, while omitting all their flaws.
The fin, or webbing between each tube, along with the tube itself, collects the sun’s heat and efficiently transfers the heat to your pool water. The fin also enables the collector to flex, expand, and contract without putting pressure on the water-carrying tubes, while allowing the roof to “breathe”.
DESIGNED WITH YOU IN MIND
1. Perfect for Replacing Old or Damaged Panels

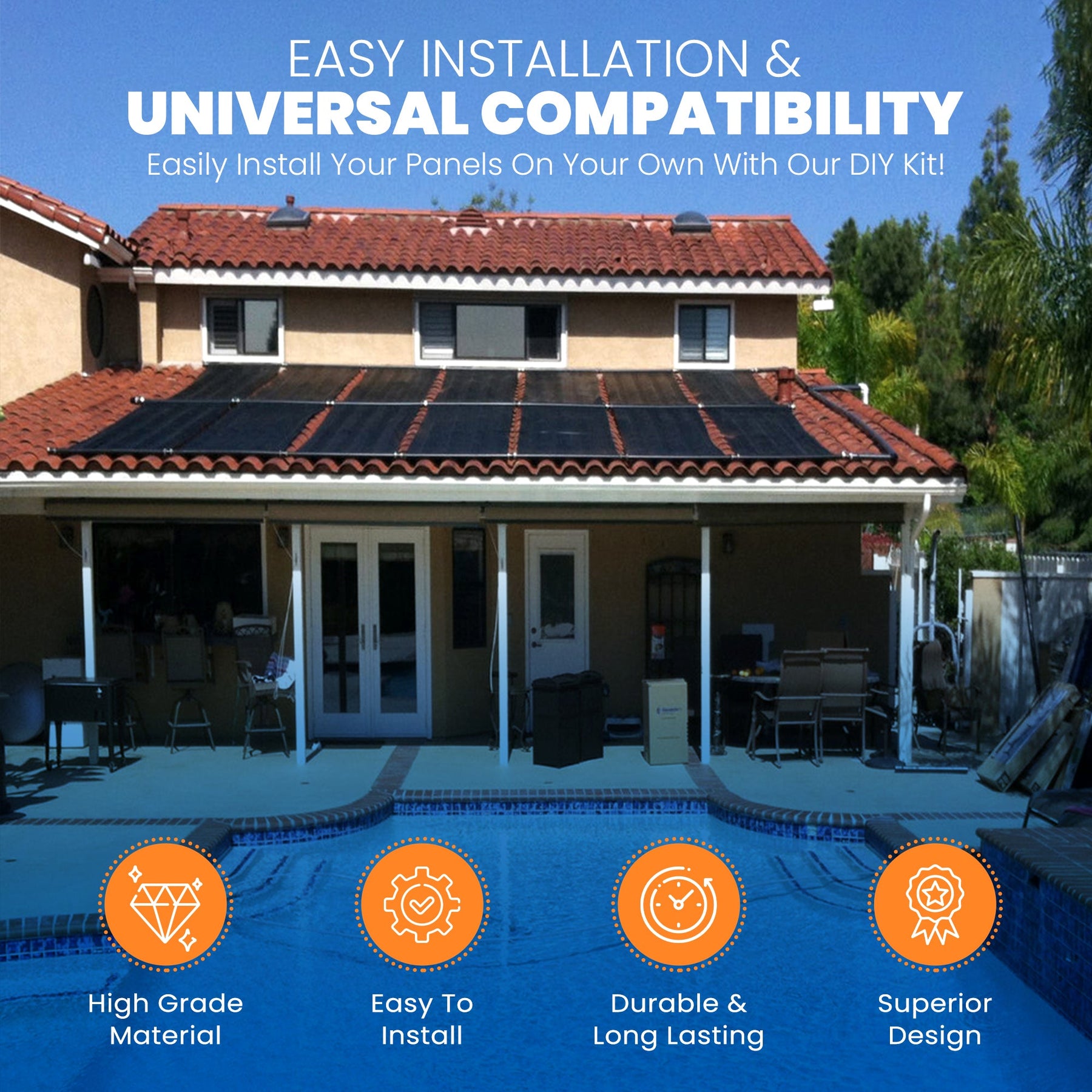

2. Fast & Easy Setup
What If I Have Questions During My Install?
🎥 EXPERT SUPPORT AT YOUR FINGERTIPS!
Shipped & Delivered Fast!

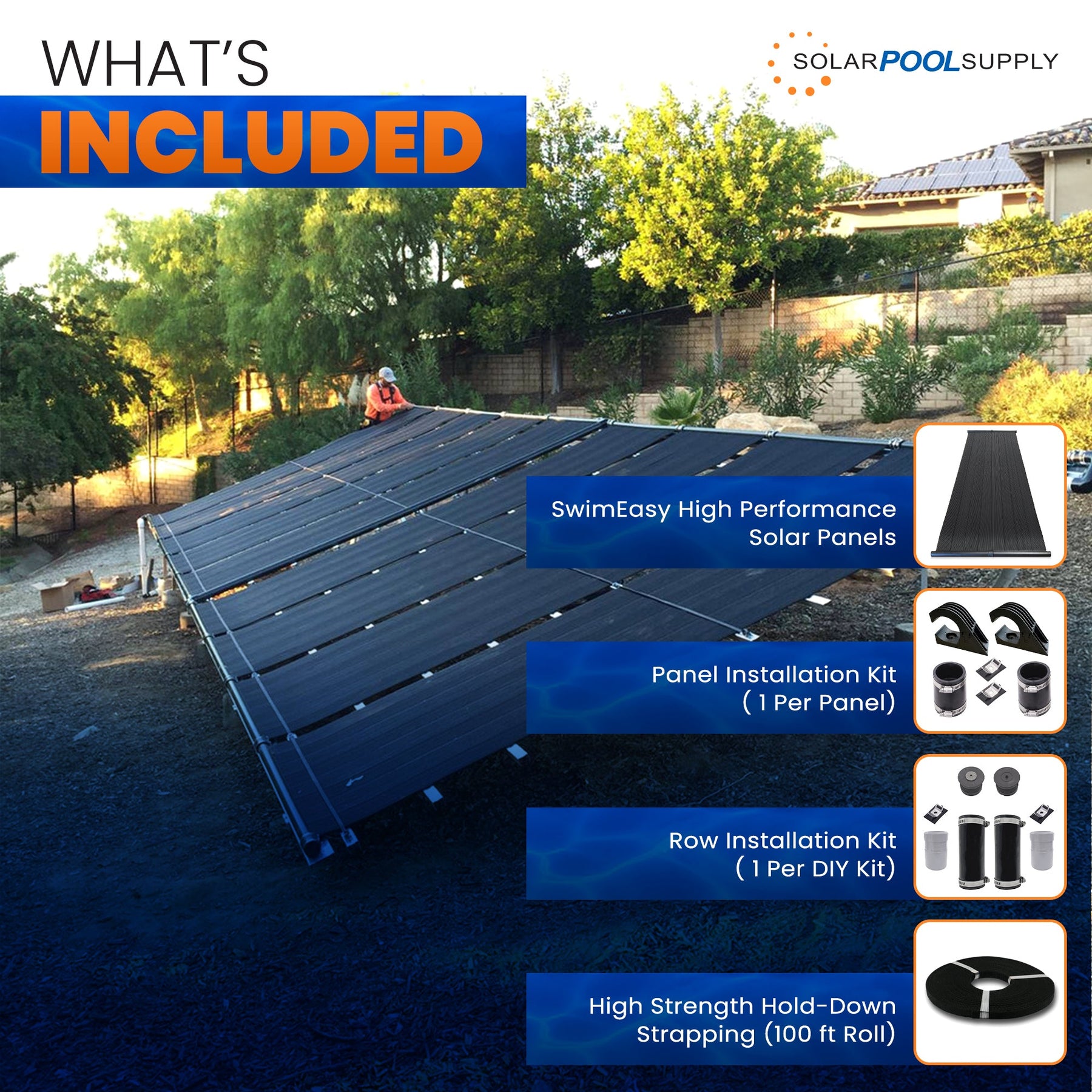

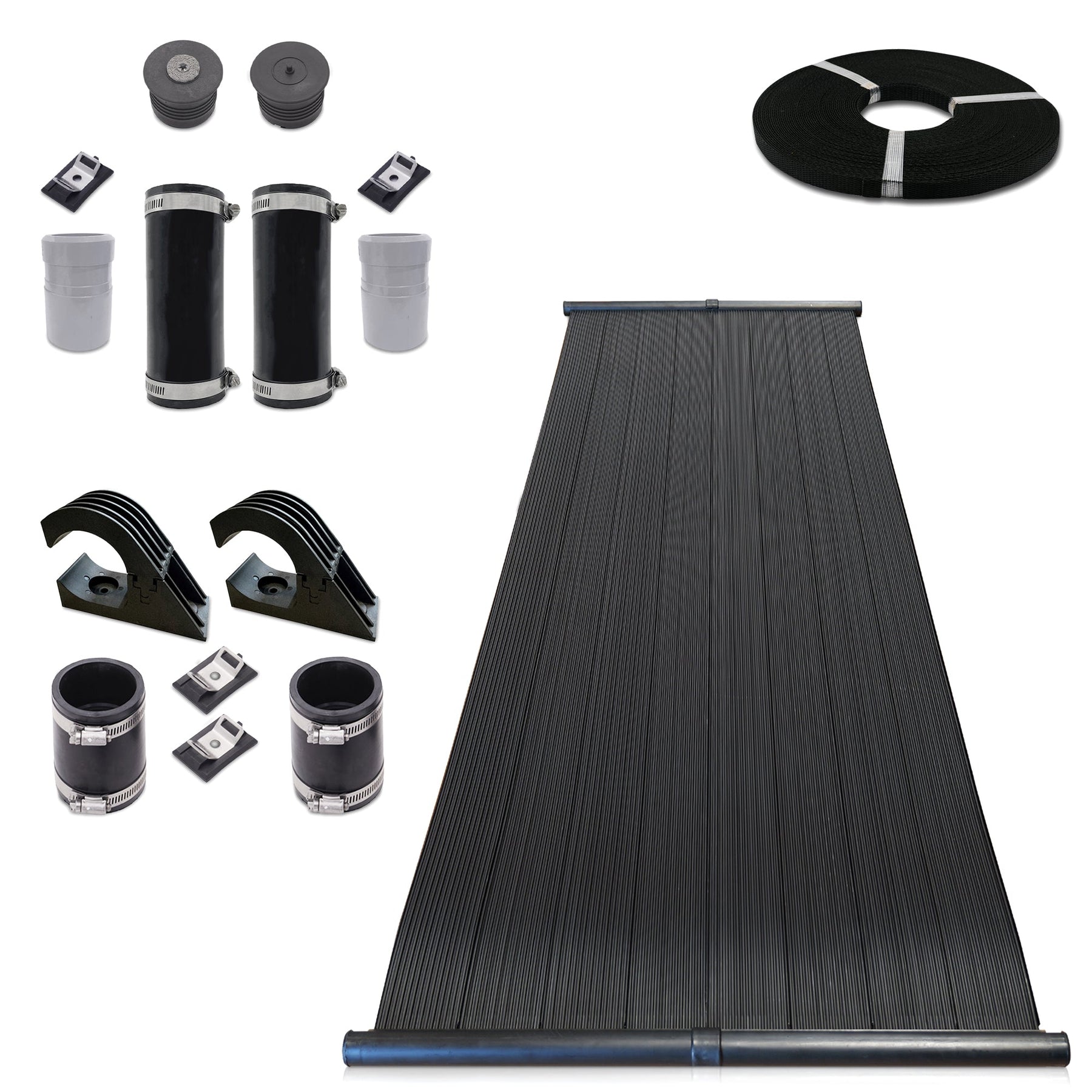

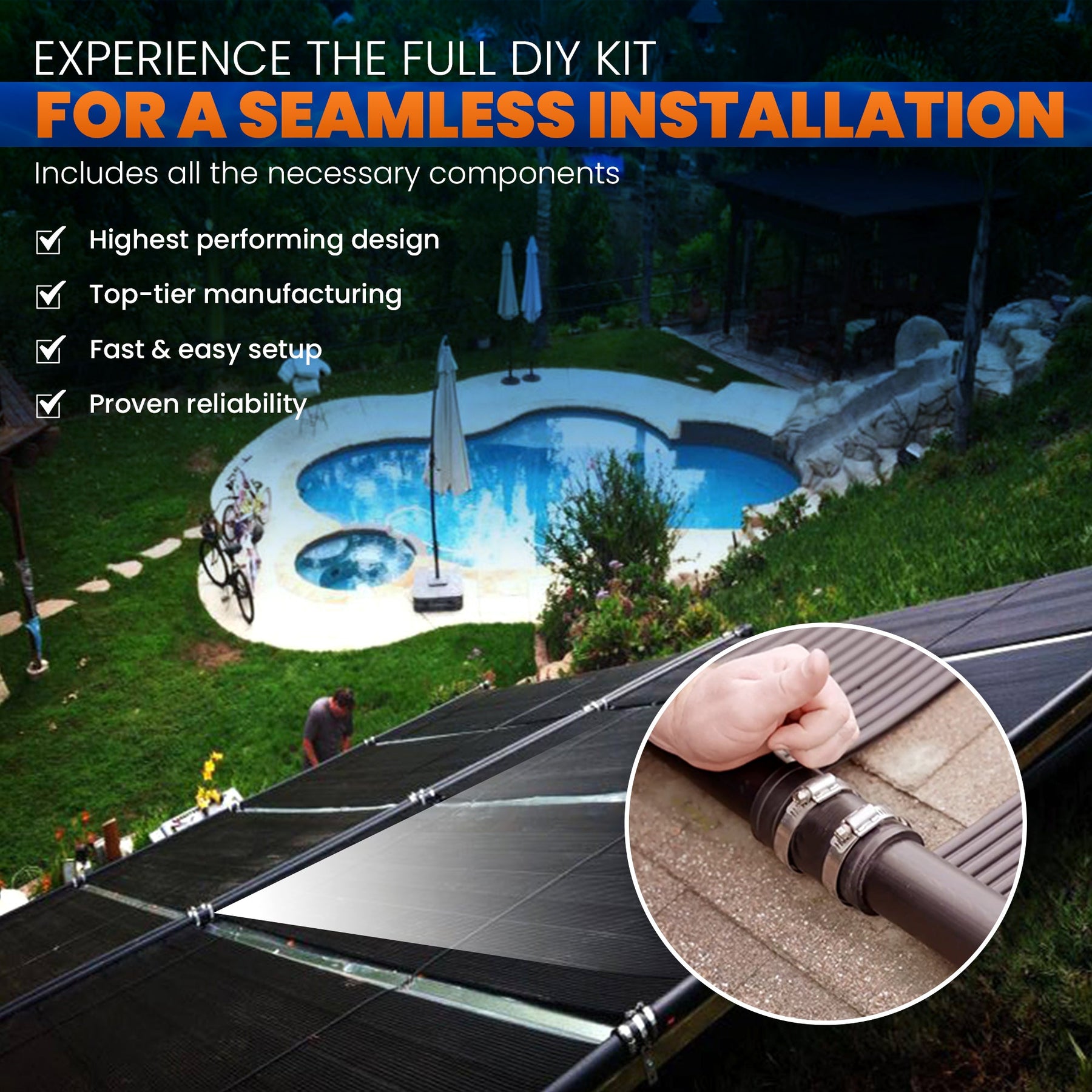

WHAT'S INCLUDED:
EACH DIY KIT INCLUDES EVERYTHING YOU NEED TO:
Install the selected number of solar panels in a single row. Mount each solar panel to your preferred installation surface (roof or rack). Make water connections to and from each panel. Make water connections to the systems’ supply and return plumbing lines. Contains the parts necessary to aid in gravity drainage of the panels and piping.

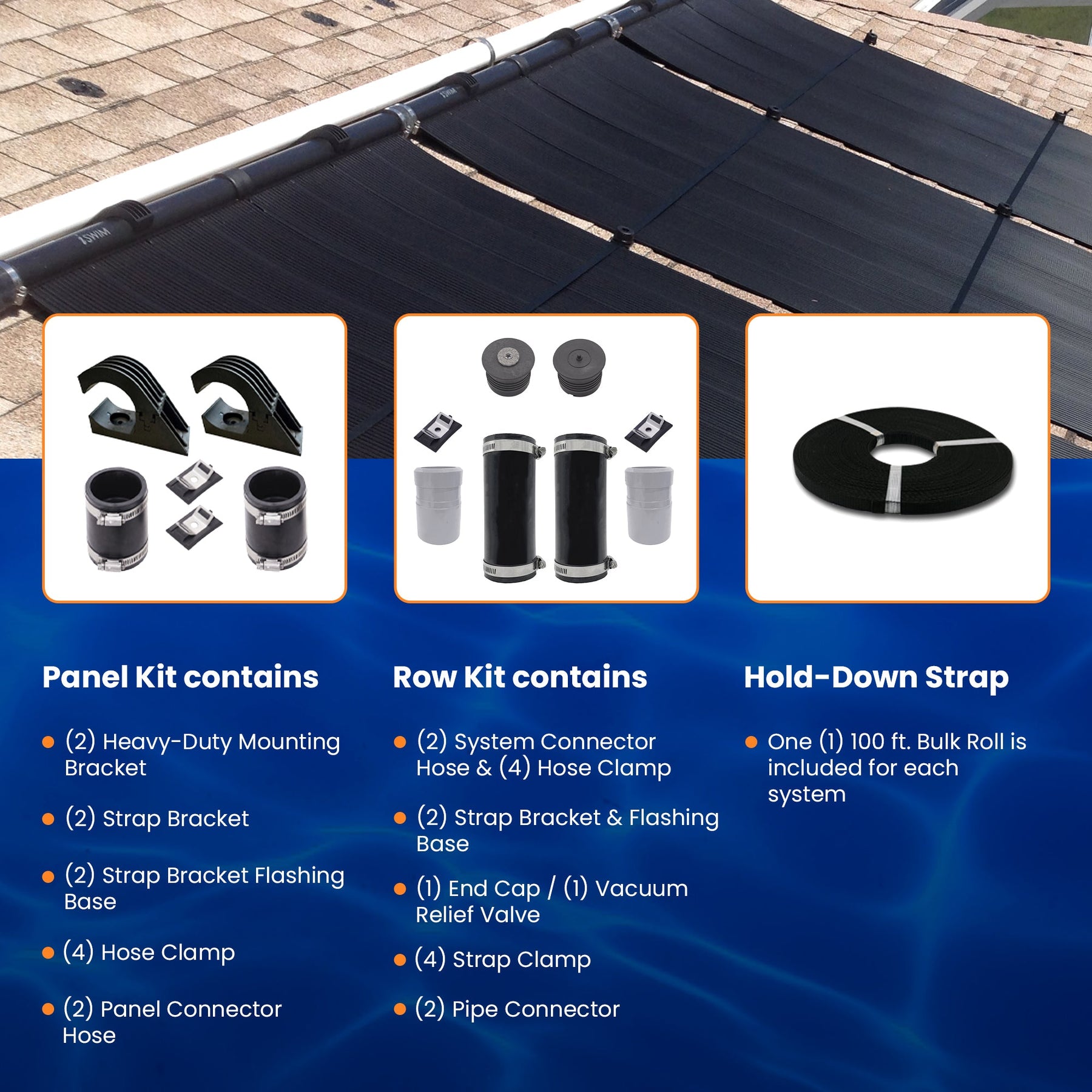

THE FOLLOWING COMPONENTS ARE INCLUDED IN EACH DIY KIT:
Panel Install Kit: Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another.
- One (1) Panel Kit is included for each solar panel.
- Each Panel Kit contains: (2) Heavy-Duty Mounting Bracket / (3) Strap Bracket, Stainless Steel / (3) Strap Bracket Flashing Base / (4) Hose Clamp, Stainless Steel / (2) Panel Connector Hose.
Row Install Kit: Contains the parts necessary for making water connections from a row of solar pool heating panels to the systems supply and return plumbing lines. Also contains the parts necessary to aid in gravity drainage of the panels and piping.
- One (1) Row Kit is included for each system.
- Each Row Kit contains: (3) Strap Bracket, Stainless Steel / (3) Strap Bracket Flashing Base / (6) Strap Clamp, Stainless Steel / (4) Hose Clamp, Stainless Steel / (1) End Cap / (1) Vacuum Relief Valve / (2) System Connector Hose / (2) Pipe Connector.
Hold-Down Strapping: Fastens solar pool panels to a supporting surface (roof or rack) and keeps them secure.
- One (1) 100 ft. Bulk Roll is included for each system.
- For normal / low wind climates, three (3) rows of strapping are recommended per panel.
- For high-wind climates, five (5) rows of strapping are recommended per panel.
OPTIONAL ADD-ON: Manual Temperature Control Kit:
You have the option of including a full set of valves necessary for completing the plumbing connections from your solar pool heating panels to your pool's pump & filtration system. This package of Premium Pentair Pool Valves has been bundled together to provide you with a complete set of the best valves you can get (should you choose to include them).
If you are installing a system for the first time, these valves will be needed to complete the plumbing connection from your solar panels to your pool's pump and filtration system. If you are replacing an existing system, these valves may already be in place, and new ones would then not be needed.
Generally Speaking:
- For new installations (first time installs): Valves will be needed.
- For replacing an old/existing system: Valves not required.
If you choose to include valves, you will receive a full set of Premium Pentair CPVC Optimum positive-seal pool valves. These are top of the line valves that provide a lifetime of superior performance and have excellent flow characteristics for a high flow rate, ideal for maximizing the performance and efficiency of your solar pool heating system.
A 3-port diverter valve is manually adjusted to turn solar on and off. Two isolation valves are used to completely shut off solar for maintenance and winterization (prevents water from entering the solar panels). The check valve is used to prevent water from flowing backwards through your pump & filter. Includes premium Pentair lube-free valve’s, 2″-2.5″ CPVC.
If you choose to include valves, you will receive the following:
- (1) Pentair 3-Port Solar Valve w/ Drain Down, CPVC, 2″-2.5″
- (2) Pentair 2-Port Check Valve, CPVC, 2″-2.5″
- (2) Pentair 2-Port Isolation Valve, Positive Seal, CPVC, 2″-2.5″

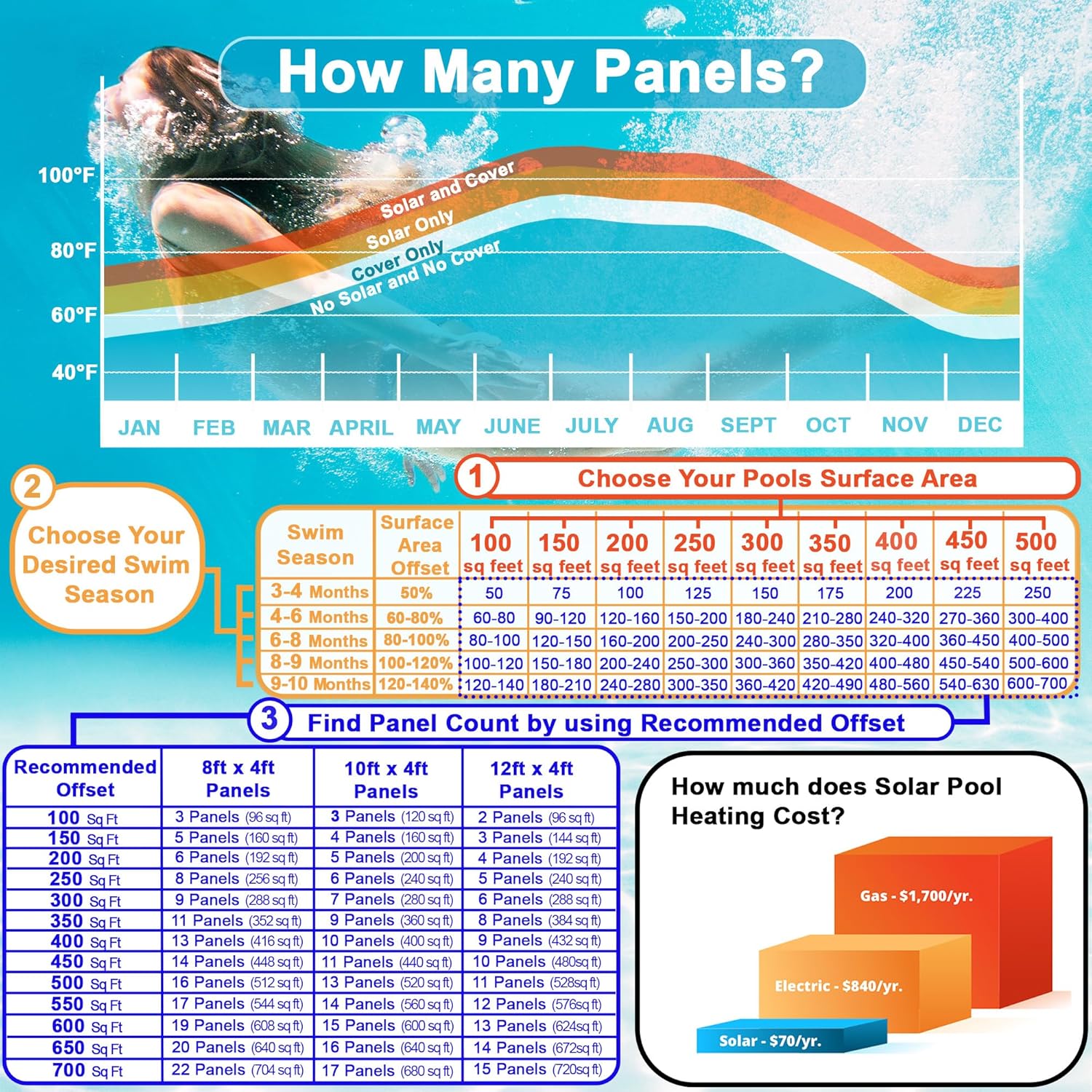

SYSTEM SIZING: How Many Solar Panels Do I Need?
A few different variables should be considered when selecting a solar pool heating system to match your swimming pool. The primary factors are; your location (climate), pool size (surface area), and heating goals (how long your looking to extend your swimming season). Understanding exactly what your goals are will help determine how many panels you need.
Solar pool heating systems are sized based on the surface area of your swimming pool, rather than its volume. This is because the primary source of heat loss occurs through evaporation at the surface. If you have a geometrically shaped pool, this calculation is quite easy. If however, your swimming pool is a "freeform" shape, or a "kidney" shape, this calculation can be a bit more difficult. For pools matching this second classification, satellite mapping can be used to help measure the surface area of your swimming pool.
Generally speaking, solar pool heating systems are sized anywhere between 50%-100% of a swimming pools total surface area. IE: “50% offset” means you are matching 50% of your pool’s surface area to the total surface area of all your solar panels.
If your pool has a total surface area of 400 square feet, 50% offset means you will need a total of 200 square feet of solar panels to heat it.
As a reference, a single 4'x12' solar panel has a surface area of 48 square feet, so a system with (4) 4'x12' solar panels has a total surface area of 192 square feet.
- 3-4 Month Swimming Season: If you are only looking to add some additional heating during the summer months (3-4 months of warm swimming pool temperatures), 50% offset should be sufficient.
- 4-6 Month Swimming Season: If you are looking to heat your pool into the shoulder months (4-6 month swimming season), you will want to aim in the 60-80% range.
- 8-10 Month Swimming Season: If you are looking for a full spring-fall season extension (8-10 month swimming season), you will want to aim for 85%-100% offset.
EXAMPLE: Swimming Pool Size: 16' x 32' (rectangle)
- Surface Area (Swimming Pool): 512 square feet
- Desired Heating Goal: 4-5 month swimming season (Solar System Offset = 70%)
- Recommended Surface Area (Solar Panels): 358 square feet OR roughly (7) 4'x12' panels.
For a complete breakdown on how to select & size the right solar pool heating system, see our complete product sizing & brand selection help page:
>> SIZING GUIDE: How Many Panels? Which Brand?
Orders & Shipping
How long will my order take to ship?
Most orders ship within 1–2 business days. Standard delivery takes 3–7 business days within the continental U.S. Oversized or specialty items (like solar reels or heating kits) may take 5–10 business days.
Where do you ship from?
We ship from both our California and Tennessee fulfillment centers, though some items may ship from partner warehouses to ensure the fastest delivery.
Do you offer international shipping?
At this time, we currently ship only within the United States.
How can I track my order?
Once your order ships, you’ll receive an email with a tracking link so you can follow your delivery in real time.
Returns & Exchanges
What is your return policy?
Returns are accepted within 30 days of delivery for new, unused products in original packaging. Custom-sized or made-to-order items (like cut-to-fit covers) may not be eligible or may include a restocking fee. See our full Returns Policy for details.
How do I start a return?
Email orders@solarpoolusa.com with your order number, photos (if applicable), and a short note explaining the reason for return. We’ll reply with next steps and an RMA number.
Are there restocking fees?
Yes. Standard items may have a 10% restocking fee; custom or special orders may have up to 25%, depending on the product.
Solar Pool Covers
What makes GeoBubble™ covers different from regular solar covers?
GeoBubble™ covers are engineered to dramatically improve your pool’s energy efficiency — helping you cut heating and chemical costs by up to 70% while keeping your water cleaner and more comfortable year-round.
Each solar cover features an advanced bubble design that traps and retains solar heat when it’s cool and reflects excess warmth when temperatures rise, creating a more stable, balanced swimming environment.
This smart technology helps reduce evaporation, conserve energy, and extend your swimming season naturally — without the high cost of traditional heating or cooling systems.
And because they’re made with durable, UV-resistant materials, every GeoBubble™ cover is backed by a 6-year manufacturer’s warranty, giving you confidence that your investment will last season after season.
How do I choose the right GeoBubble™ solar cover for my pool?
It depends on your goals and climate:
- EnergyGuard™ – Retains heat and reduces algae
- CoolGuard™ – Keeps water cooler in hot climates
- Sol+Guard™ – Maximizes heat gain
- RaeGuard™ – Reflects light for balanced heat retention
Can I trim my solar cover to fit my pool?
Yes. Lay it over your pool and trim with scissors to fit your shape — leave a small overlap for best results.
How should I store my cover when not in use?
Rinse, dry, and store in a shaded area or use a Solar Cover Protector to prevent UV damage.
Why should I pay more for a solar cover over a regular pool cover?
A GeoBubble™ cover isn’t just another solar pool cover or blanket, it’s built to perform and made to last. While the upfront cost is a bit higher than a standard cover, the difference quickly pays for itself through noticeable savings and less upkeep.
Each cover is crafted from specialized materials designed to withstand sunlight, chemicals, and everyday wear, so it holds up season after season without thinning, cracking, or fading like ordinary covers.
You’ll also notice a cleaner pool, more stable water temperature, and less time spent topping off water or balancing chemicals. In short, you’re not just buying a cover — you’re investing in lower utility bills, less maintenance, and longer-lasting protection for your pool.
Solar Heating Panel Kits & Systems
How do DIY solar pool heating kits work?

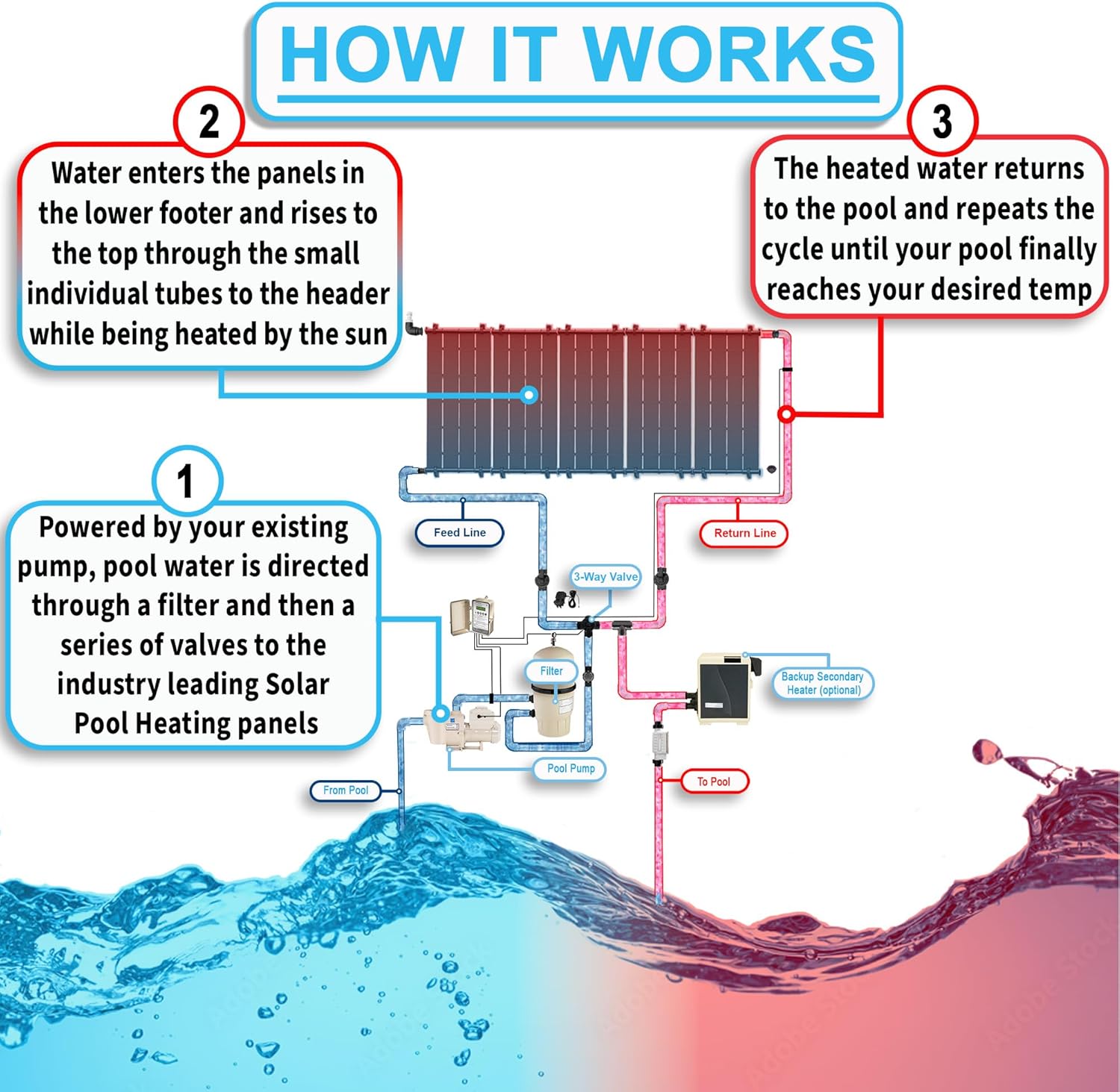

Water circulates through solar panels that absorb heat from the sun, returning warmer water to your pool — giving you free, renewable heat.
